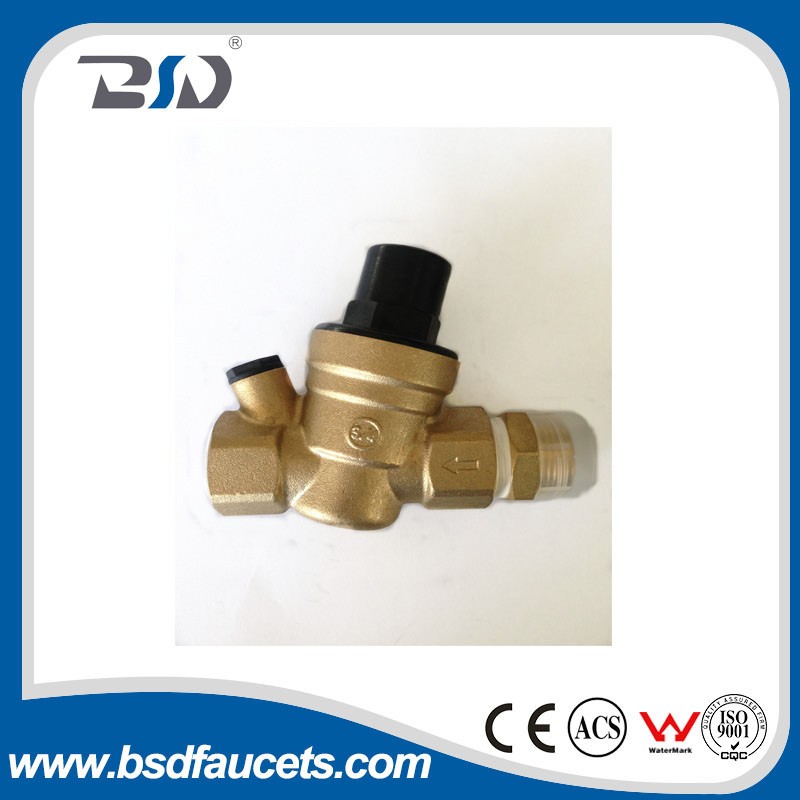

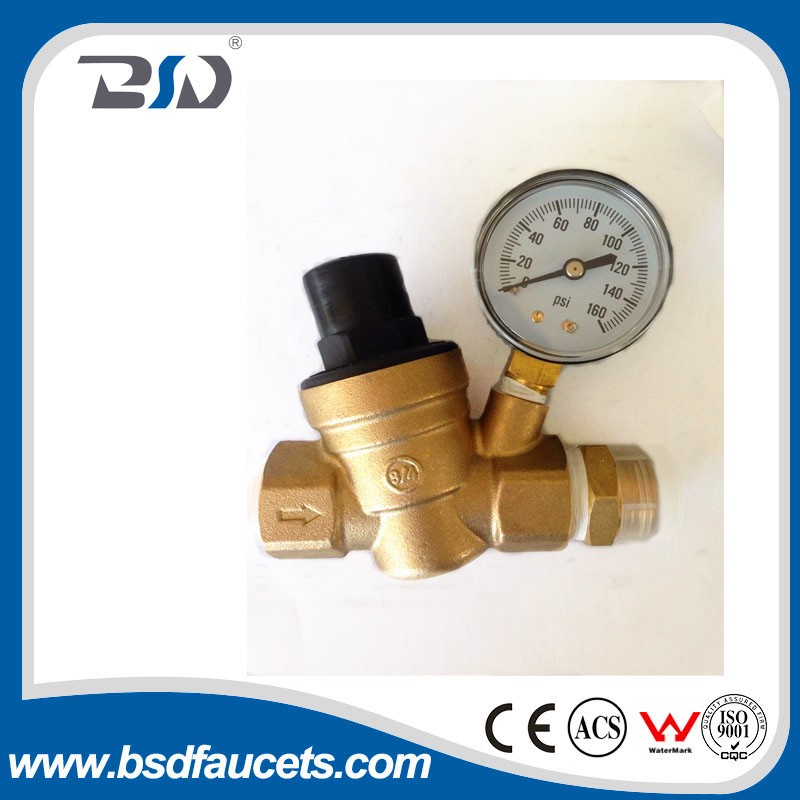

Low-lead brass Pressure reducing valve with gauge 78000B
PN:16 bar
DN:3/4“
Max temperature:80℃
Default Pressure:8 bar
Factory setting pressure: In 8bar ,Out 3bar
Default rage of accommodation:1bar~ 6bar
Medium:water
Manometer scale range:0~10bar
1,Forged brass body,Body max working pressure:16bar.
2,Main material for valve:brass and heat plasic POM material for eath seal components:EDMP.
3,Ruber diaphragm mix with fibic,tansile strength above:250kg/cm2.
4,According to the EN1254-2 standard,Crossover coupling material:CW602 after tempering make the brass toughness, ensure the leak proofness.
5,The filter in the body to prevent the impurity jam.
| Orifice size(mm) | 15 | 20 | 25 | 32 | |
| Port size (BSP,NPT) | Female thread | Female thread | Female thread | Female thread | |
| Valve body | 1/2" | 3/4" | 1" | 11/4" | |
| Fluid | Brass | Brass | Brass | ||
| Fluid Temp | Water,compressed air | ||||
| Max.inlet pressure P1(bar) | 16 | ||||
| Outlet pressure range P2(bar) | 1~6 | ||||
Are you looking for high-quality pressure reducing valve for The Floor heating valve?Do you need adjustable pressure with gauge and filter for the pressure reducing valve?
Under: www.baisida.net .you can find it.
We’ll serve you with competitive price ,high-quality ,high-performance,environmentally-friendly designer products .An emotional unit that makes your life better!
